Subaru parts
2D Adjustable Front Strut Top Mounts - Subaru Forester, Subaru Impreza, Subaru Legacy
Two 2D adjustable front strut top mounts are placed inside the packet!
The 2D adjustable front strut top mounts is designed to achieve easy adjustability in two direction. The chamber and the caster can change without any limitation. The negative chamber helps to control the car under the turning. Positive caster tends to straighten the wheel when the vehicle is traveling forward, and thus is used to enhance straight-line stability. All together 2D adjustable front strut top mounts improve steering response and performance overwhelmingly. A dramatic increase in stability over bumps and high-speed corners keeps you on your intended line, with stability and safety under corner braking being also dramatically increased.
The 2D adjustable front strut top mounts is manufactured using a high precision CNC machine. The raw material is high strength aluminium. The self lubricant spherical plain bearing was used due to the rigid construction. The original part (20320AA110 – Subaru genuine part number) can be easy to replace.
• Easy adjustability
• Rigid construction
• Lightweight design
• Easily changeable from the original part
• High strength aluminum
• High precision CNC machining
• Self lubricant spherical plain bearing
• Proven on high speed racing car
• Hard anodized finish
• Subaru Forester, Subaru Impreza, Subaru Legacy application
|
|

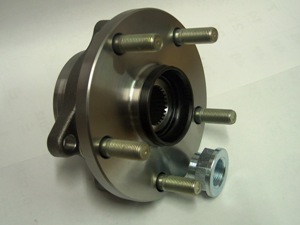

Front Wheel Bearing & Hub Assembly, SUBARU genuine part - Subaru Impreza 2.0, Subaru Impreza 2.5
The kit contains the following parts:
• Bearing & Hub Assembly: 28373FE000, 28373FE001, 28373FG010; NTN JAPAN HUB103T-33 08-7-22; Subaru genuine part
• Hub (axle) nut: 902170044, 902170047; Subaru genuine part
• 5 pcs bolt-hub: 28055AA002, 28055AA003, 28365FE000, 28365FE001; Subaru genuine part
For Subaru Impreza 2.0 and Subaru Impreza 2.5 which has “big” hub assembly (boltpattern: 5×114.3). The wheel bearing & hub assembly fits either LH (driver side) and RH (passenger side) car.
|
|
Modified Front Wheel Bearing & Hub Assembly (boltpattern 5×100), SUBARU genuine part - Subaru Impreza 2.0, Subaru Impreza 2.5
Front wheel bearing & hub assembly has originally 5×114.3 boltpattern, which was modified to 5×100. The modified front wheel bearing & hub assembly is fit to the 5×100 Subaru wheels. The modified front wheel bearing & hub assembly is machined from Subaru genuine part.
The kit contains the following parts:
• Bearing & Hub Assembly: 28373FE000, 28373FE001, 28373FG010; NTN JAPAN HUB103T-33 08-7-22; Subaru genuine part
• Hub (axle) nut: 902170044, 902170047; Subaru genuine part
• 5 pcs bolt-hub: 28055AA002, 28055AA003, 28365FE000, 28365FE001; Subaru genuine part
For Subaru Impreza 2.0 and Subaru Impreza 2.5 which has “big” hub assembly (original boltpattern: 5×114.3). The wheel bearing & hub assembly fits either LH (driver side) and RH (passenger side) car.
|
|

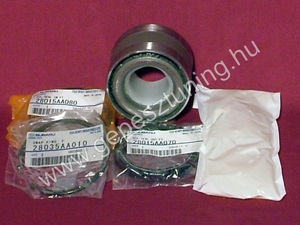

Rear Wheel Bearing Kit (taper roller bearing with seals and snap ring) Subaru Genuine Parts - Subaru Impreza 2.0, Subaru Impreza 2.5, Subaru SVX 3.3
The kit contains the following parts:
• Taper roller bearing: 28016PA010, NTN 4T-CRI-08A02 JAPAN KN, Subaru genuine part
• Oil seal in: 28015AA080, Subaru genuine part
• Oil seal out: 28015AA070, Subaru genuine part
• Snap ring: 28035AA010, Subaru genuine part
• Bearing grease, Subaru genuine part
The bearing is suitable for the cars below:
• Subaru Impreza 2.0
• Subaru Impreza 2.5
• Subaru SVX 3.3
The rear wheel bearing kit is appropriate for the “big” hub assembly (boltpattern: 5×114.3), and for the spec C hub assembly (boltpattern: 5×100), too. The bearing dimensions are: 72 mm outer diameter, 29 mm inner diameter, 52 mm width. The rear wheel bearing kit fits either LH (driver side) and RH (passenger side) car.
The bearing, the oils seals, the snap (clip) ring and the grease are SUBARU genuine parts.
|
|

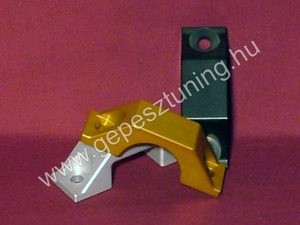

Kormánymű tartó
|
|

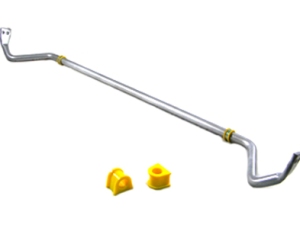

BSF39Z - Sway bar - 22mm heavy duty blade adjustable
|
|

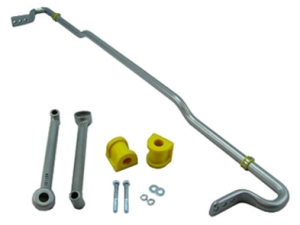

BSR49Z - Sway bar - 20mm heavy duty blade adjustable
|
|

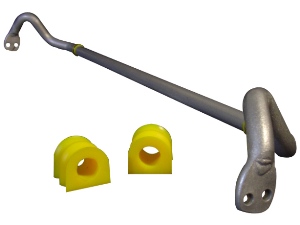

BSF33XZ - Sway bar - 24mm X heavy duty blade adjustable M/SPORT
|
|

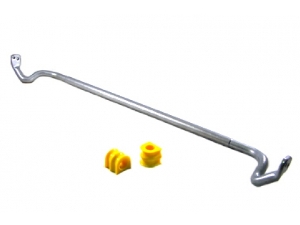

BSF33XXZ - Sway bar - 27mm XX h/duty blade adjustable M/SPORT
|
|

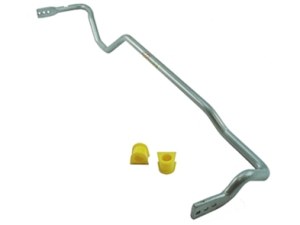

BSR37XZ - Sway bar - 24mm X heavy duty blade adjustable
|
|

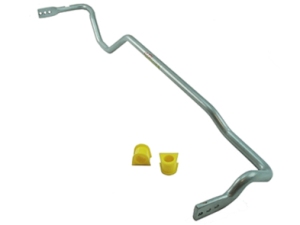

BSR37Z - Sway bar - 22mm heavy duty blade adjustable
|
|
BSF36Z - Sway bar - 22mm heavy duty blade adjustable
|
|
BSR37XXZ - Sway bar - 27mm XX h/duty blade adjustable M/SPORT
|
|
|
